Product Description

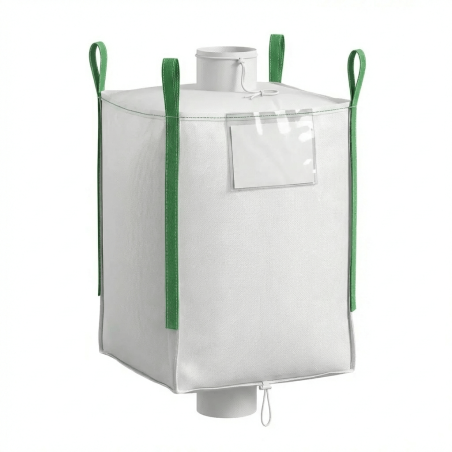

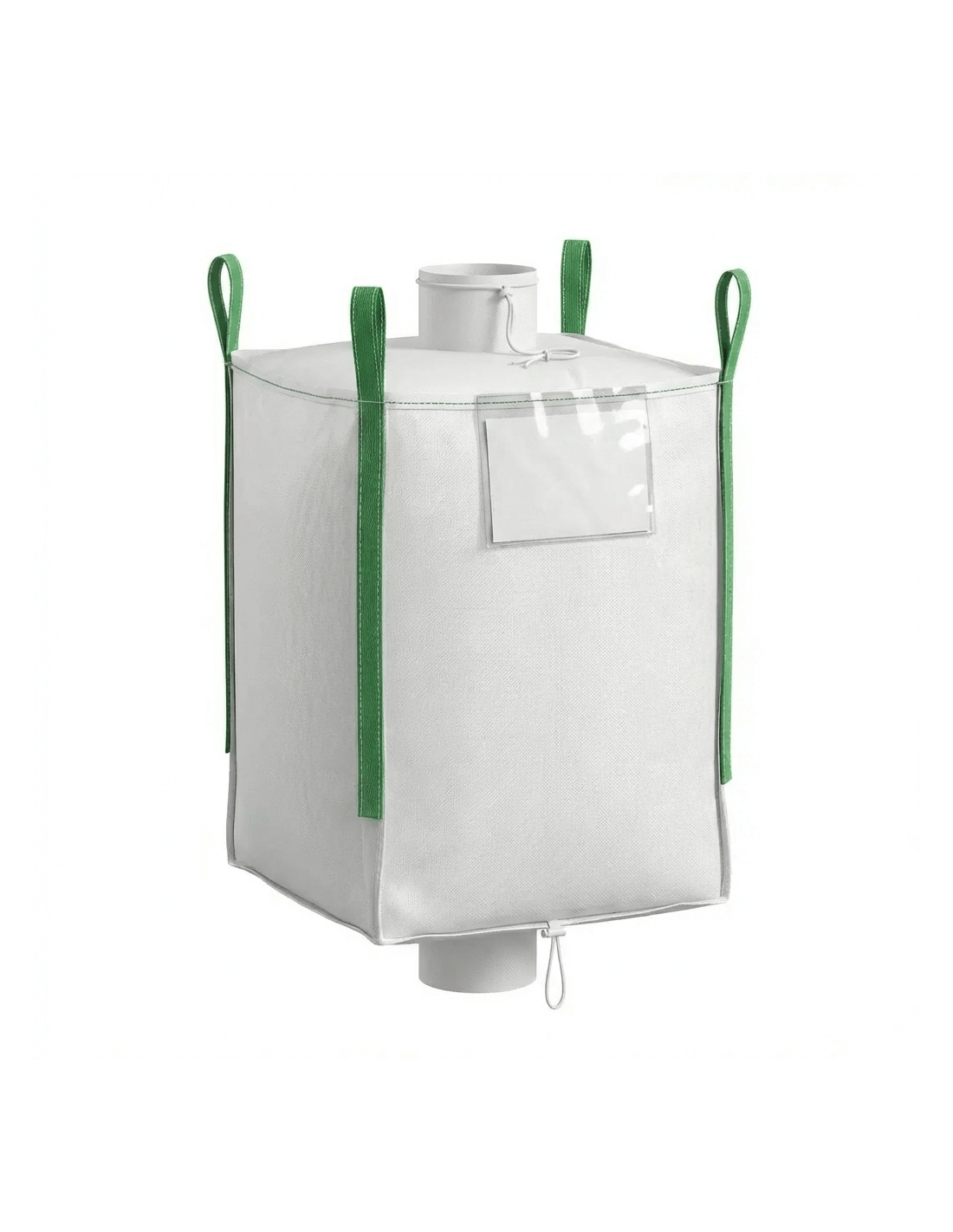

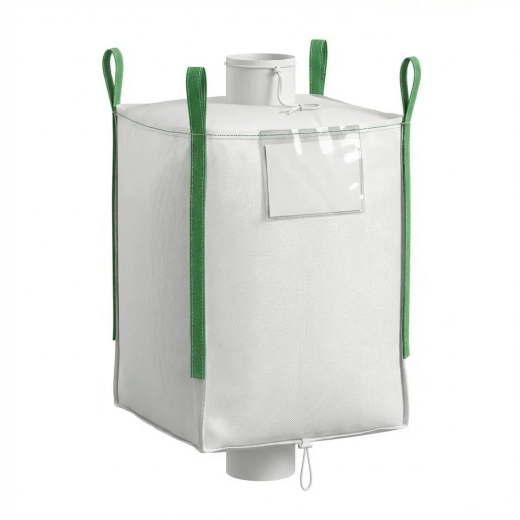

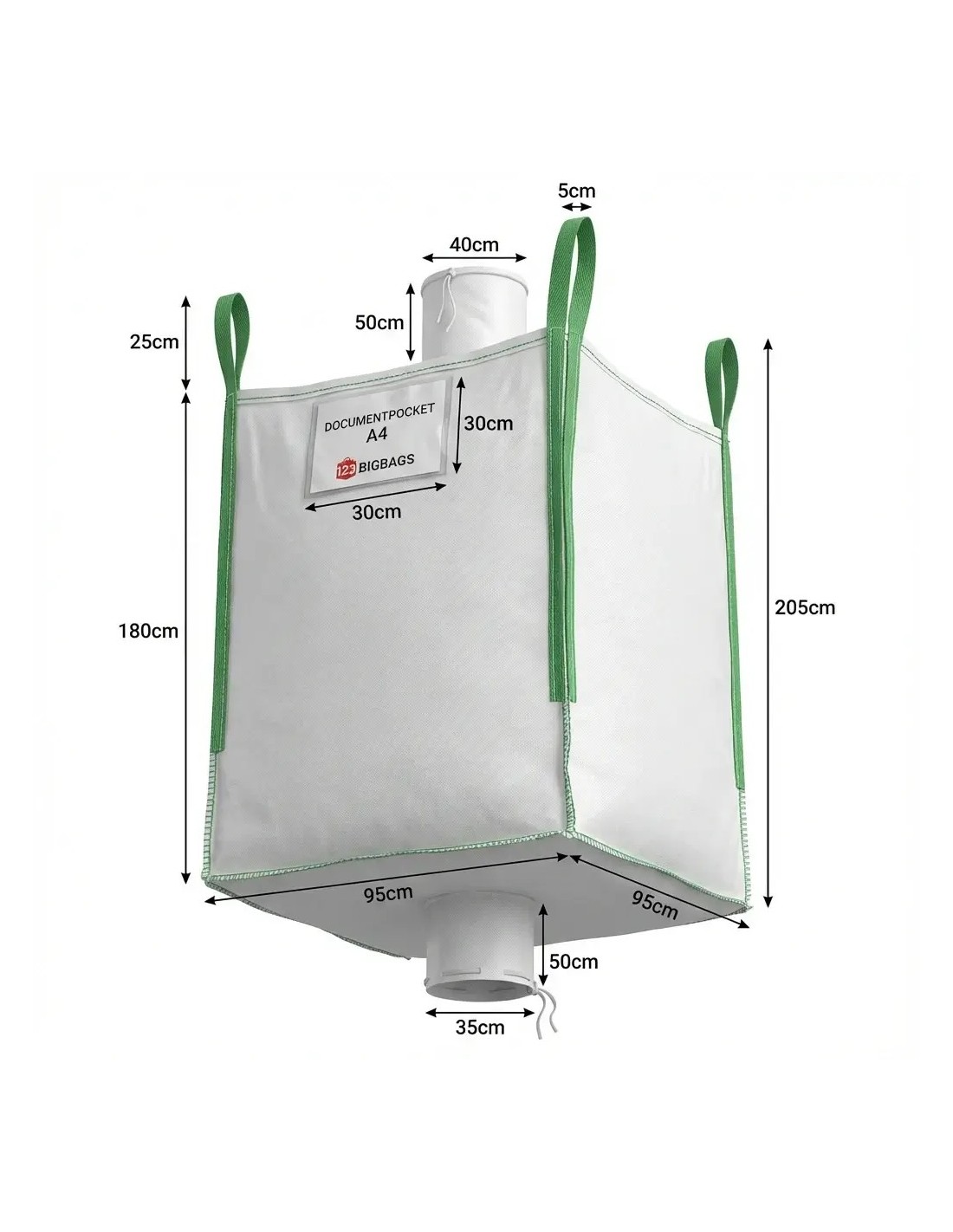

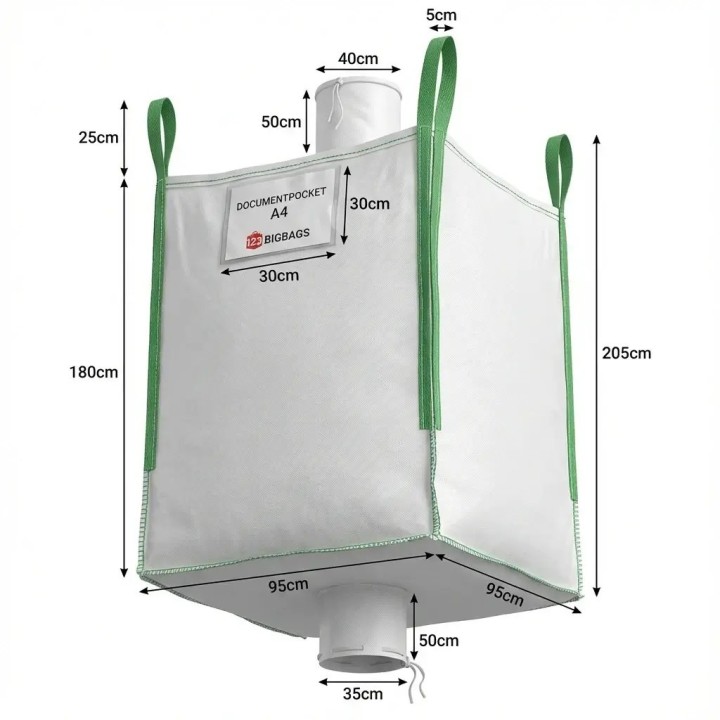

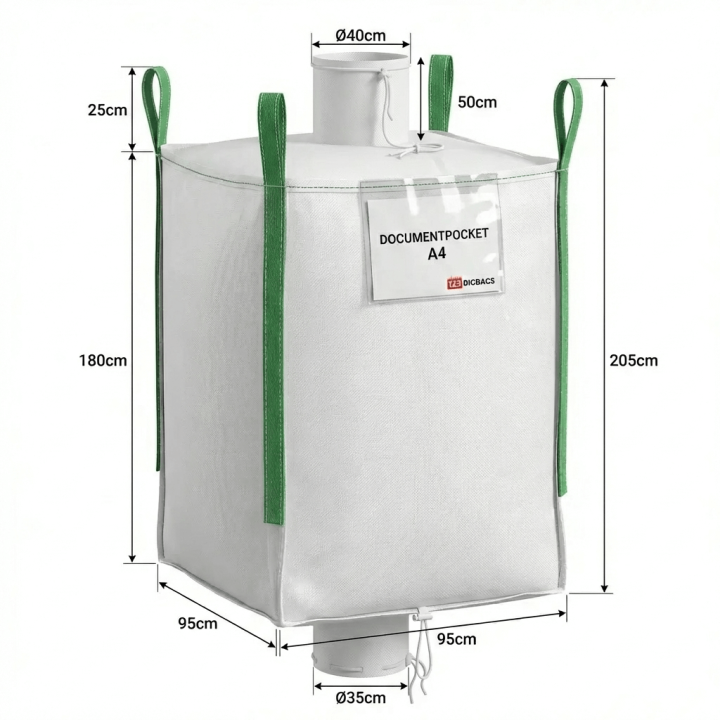

This Big Bag with Filling and Discharge Spouts, dimensions (95x95x180cm), a capacity of 1.6m³ and a Safe Working Load of 1000 kg is designed for professional bulk handling applications where controlled filling and clean discharge are required.
Manufactured from durable uncoated woven polypropylene (PP) with UV stabilisation and a fabric weight of 150 g/m², this bulk bag provides reliable performance for medium and light bulk materials in industrial, recycling and agricultural environments.

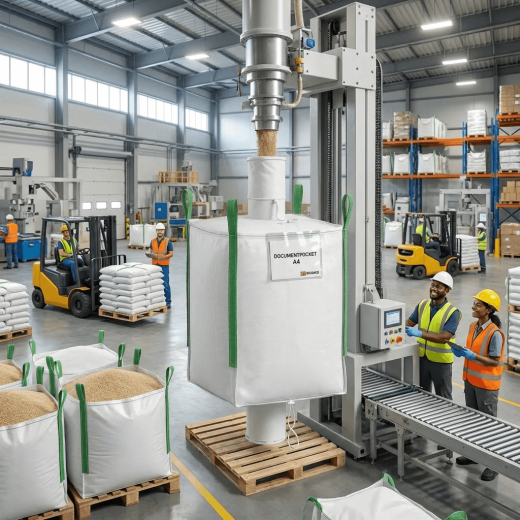

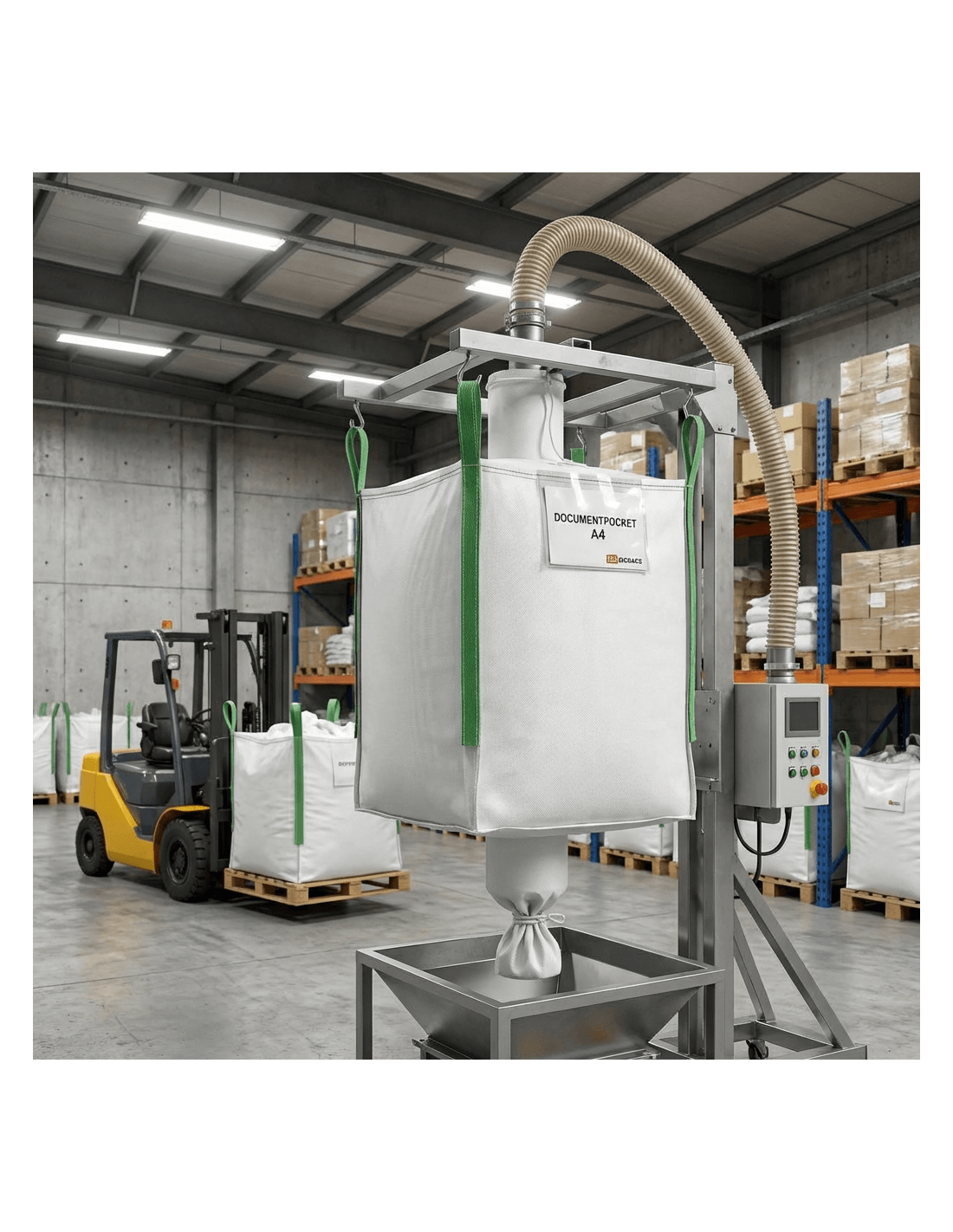

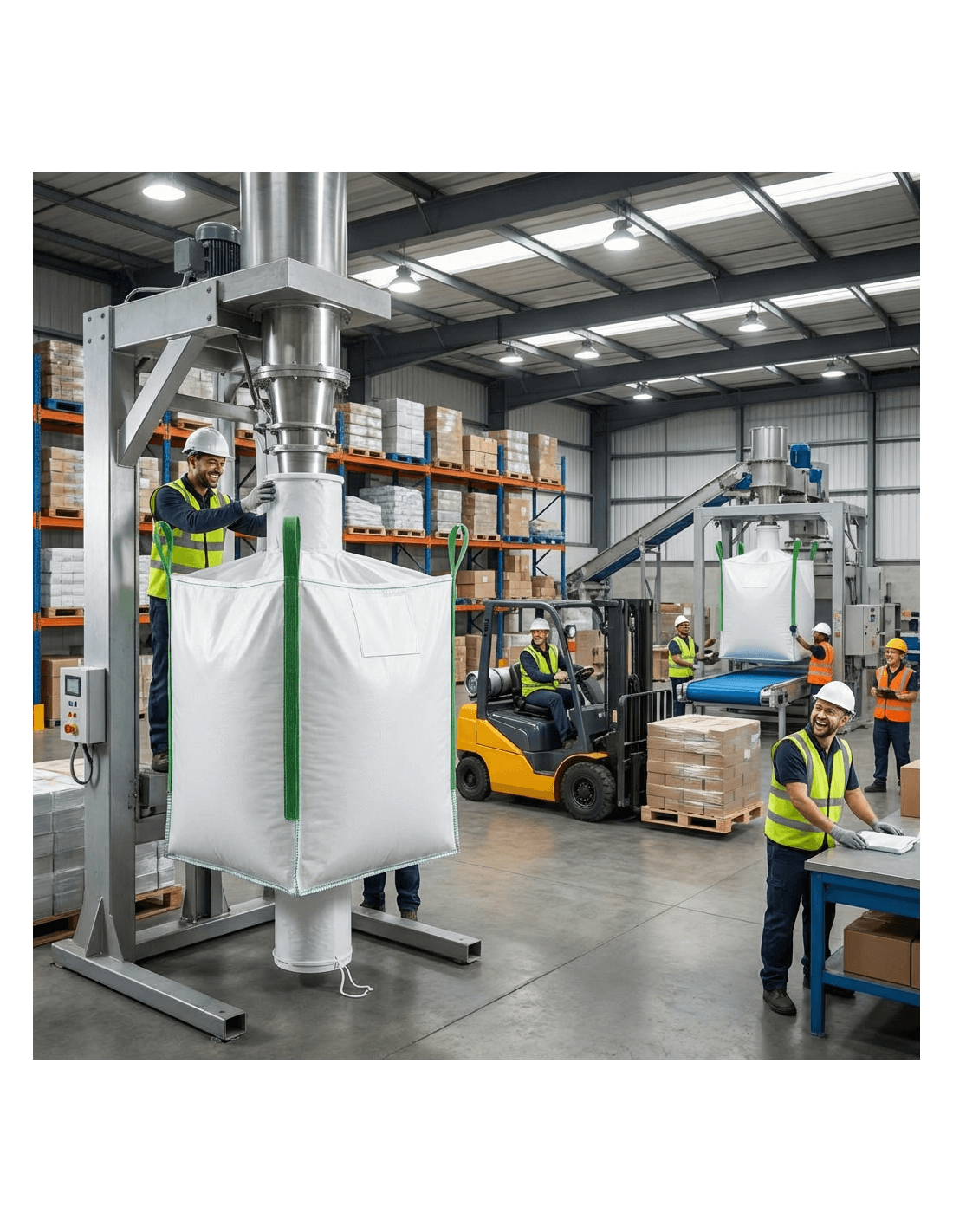

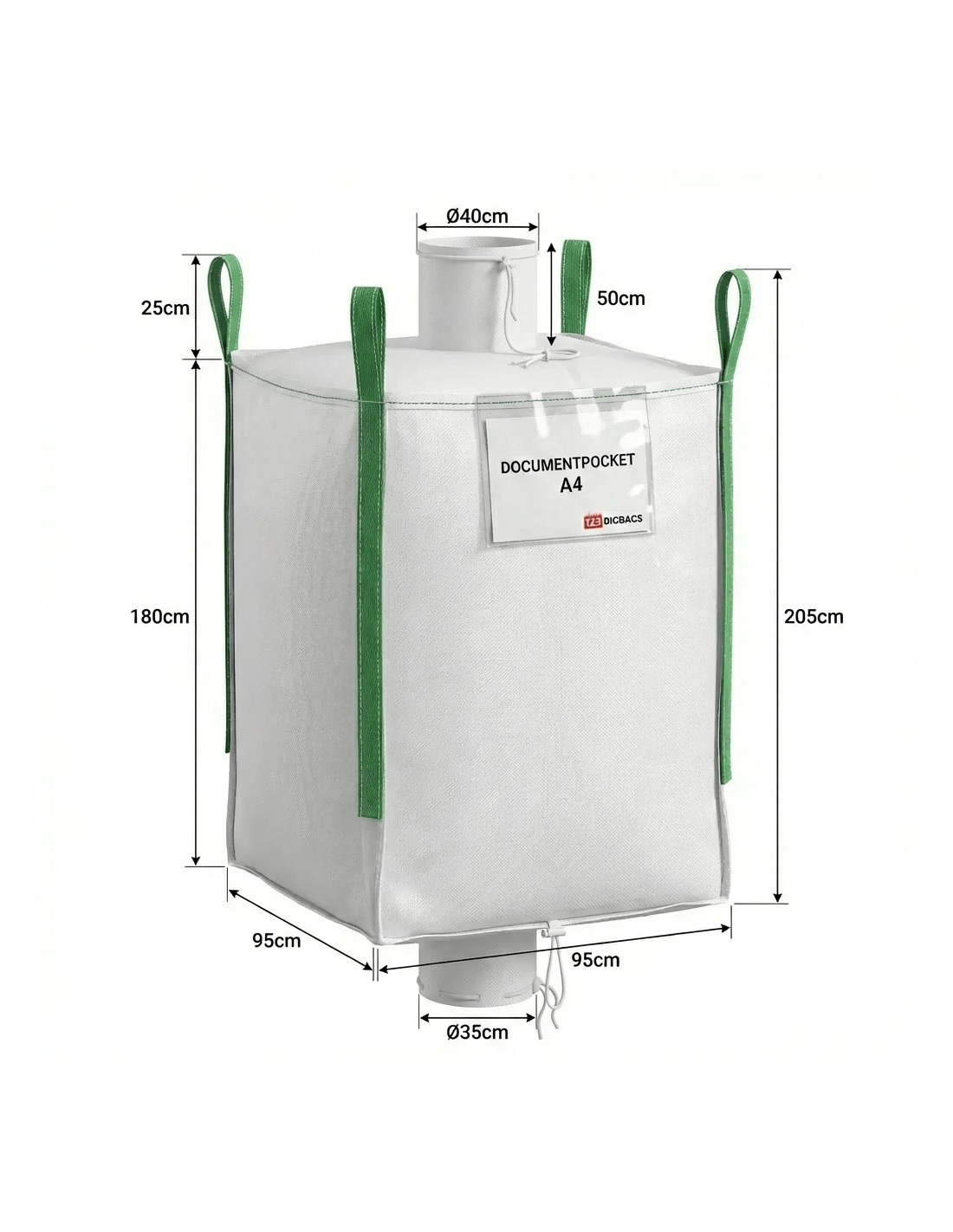

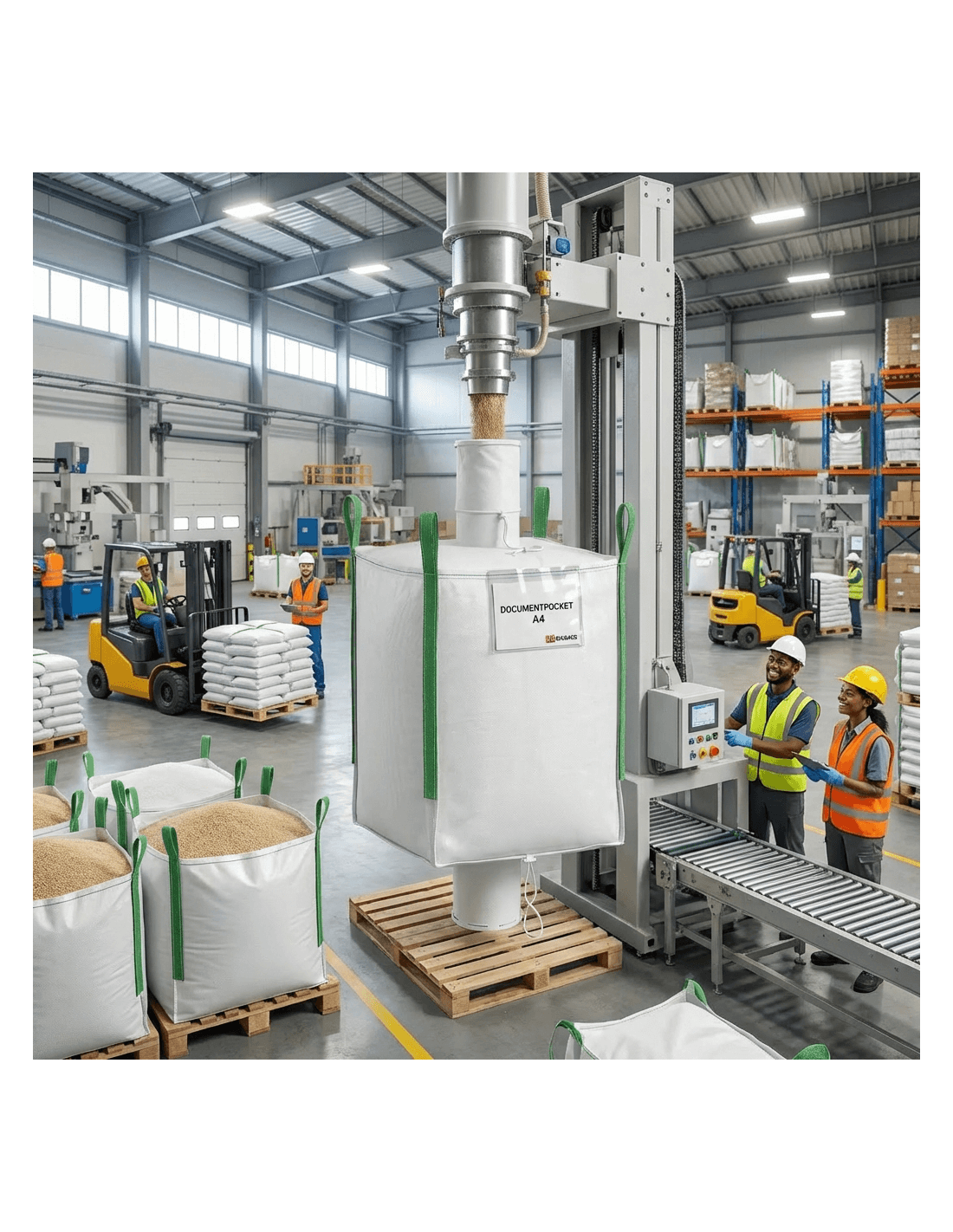

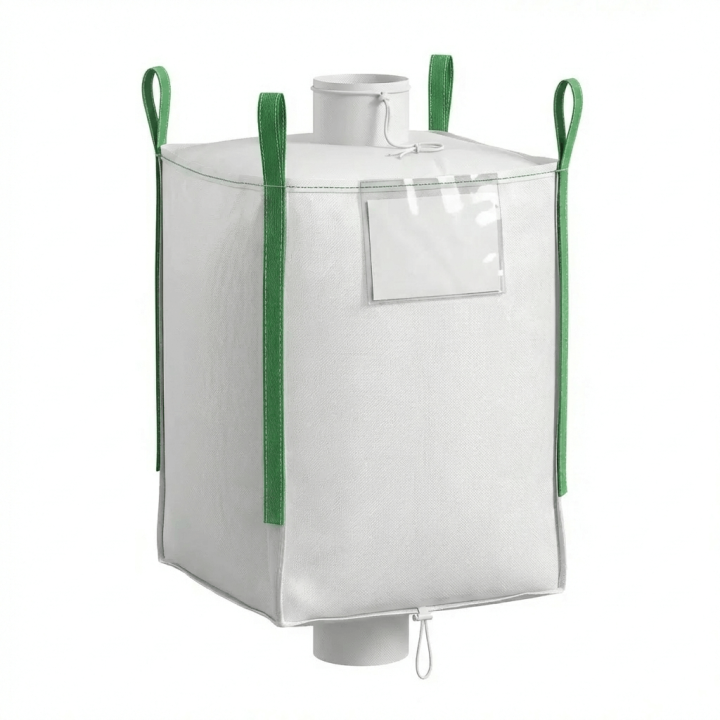

The bag is equipped with a top filling spout with a diameter of 40 cm and a length of 50 cm, allowing direct connection to standard filling machines and conveyor systems. The bottom discharge spout measures 35 cm in diameter and 50 cm in length, enabling controlled and efficient emptying without cutting the bag.
The flat, closed base ensures stable positioning during loading and transport. The bag is fitted with four green cross corner lifting loops with a length of 25 cm for safe handling with forklifts and cranes.
The bag includes a practical A4 document pouch for transport documentation and batch identification. Its UV-stabilised fabric allows temporary outdoor storage under normal handling conditions.
With a 5:1 safety factor, this bulk bag is designed for single use. Limited reuse may be possible if the bag remains undamaged and has been handled correctly.
Key features
- Capacity 1.6m³
- Dimensions (95x95x180cm)
- Safe Working Load 1000 kg
- Uncoated woven polypropylene (PP) 150 g/m²
- Four green cross corner lifting loops
- Top filling spout Ø 40 cm x 50 cm
- Bottom discharge spout Ø 35 cm x 50 cm
- Flat, closed base
- UV stabilised
- A4 document pouch
- Safety factor 5:1
- Suitable for granulates, sand, gravel, sawdust and agricultural bulk materials
Why choose this Big Bag with Filling and Discharge Spouts?

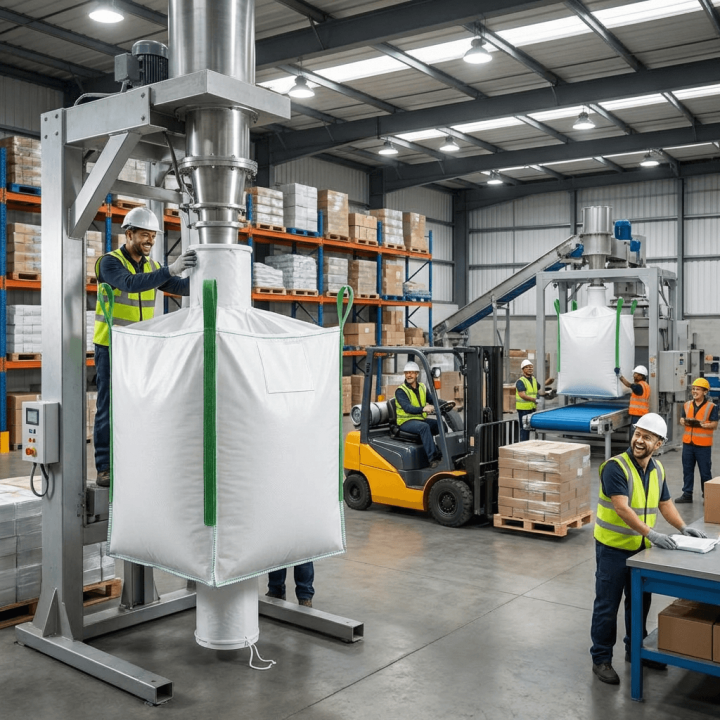

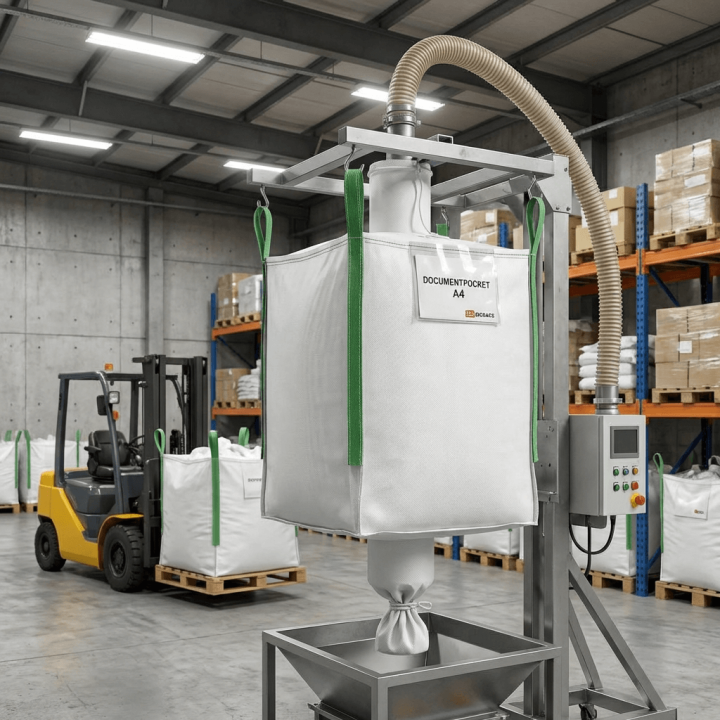

The integrated filling spout allows direct connection to filling machines and conveyor systems, improving workflow efficiency and reducing material loss.
The bottom discharge spout enables controlled and clean emptying without damaging the bag, making material processing and redistribution easier.
Its tall 1.6m³ format offers increased storage volume while maintaining stable handling and transport performance.
Frequently Asked Questions (FAQ)
What materials can this bag be used for?
This bag is suitable for sand, gravel, granulates, sawdust, soil, agricultural products and medium bulk materials.
What is the Safe Working Load?
The Safe Working Load (SWL) is 1000 kg.
Can this bag be used for cement or very fine powders?
No. The uncoated woven fabric is not suitable for very fine powders. For those materials, a coated or liner version is recommended.
Can the filling spout connect to machines?
Yes. The 40 cm diameter filling spout allows connection to standard filling systems and pipes.
Do I need to cut the bag open to empty it?
No. The bottom discharge spout allows controlled emptying without cutting the bag.
Is the bag reusable?
With a 5:1 safety factor, this bag is designed for single use. Limited reuse may be possible if handled correctly.
Is it suitable for outdoor storage?
Yes. The UV-stabilised polypropylene fabric allows temporary outdoor storage.
What lifting equipment can be used?
The four cross corner loops allow safe handling with forklifts and cranes.
Order your 1.6m³ Big Bag online and improve bulk material handling with clean filling and controlled discharge.
